Description
SMD Fast Switching Diodes, Case SOT-23 BAS Series, 3 Pads, Working Peak Reverse Voltage 250V. Forward Continuous Current 0.40A Max.
• Fast Switching Speed
• High Conductance
APPLICATION
• For General Purpose Switching Applications
WELCOME TO OUR STORE!
-
All Categories
- Bridge Rectifier
- ESD Diode
- Fast Recovery Diode
- General Purpose Diode
- High Efficiency Diode
- MOSFET
- Schottky Diode
- Super Fast Diode
- Switching Diode
- Transistor
- TVS Diode
- Zener Diode

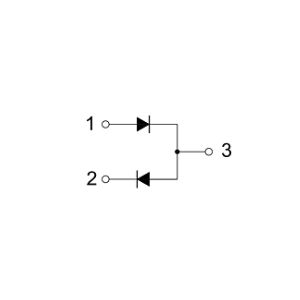

Switching Diode SOT-23 Series BAS21S
SMD Fast Switching Diodes, Case SOT-23 BAS Series, 3 Pads, Working Peak Reverse Voltage 250V. Forward Continuous Current 0.40A Max.
Key Features:
- Series: SOT-23
- Repetitive Peak Reverse Voltage: 250V
- Working Peak Reverse Voltage: 250V
- DC Blocking Voltage: 250V
- Average Rectified Output Current: 200mA
- Forward Continuous Current: 400mA
- Power Dissipation: 225mW
Specification
| Series | SOT-23 |
|---|---|
| Part Status | Active |
| Supplier Device Package | SOT-23, 3pads |
| Repetitive Peak Reverse Voltage | 250V |
| Working Peak Reverse Voltage | 250V |
| DC Blocking Voltage | 250V |
| Average Rectified Output Current | 200mA |
| Forward Continuous Current | 400mA |
| Non-repetitive Peak Forward Surge Current @T=8.3ms | 2.5A |
| Repetitive Peak Forward Surge Current | 625mA |
| Power Dissipation | 225mW |
| Thermal Resistance Junction To Ambient | 555°C/W |
| Junction Temperature | 150°C |
| Storage Temperature Range | -55 ~+150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23 series,BAS21S Type, 3 pads |
| RoHS Status | RoHS III Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8541.21.0075 |
| Standard Package (MPQ) | 3000pcs/Reel, Quantity entered must be multiple of 3000 |
| NCNR | Non-Cancelable/Non-Returnable |
