Description
SMD Fast Switching Diodes, Case SOT-23 BA Series, 3 Pads, Reverse Voltage (VR): 70V Max., Forward Current (IF) 0.20A Max.
• Fast Switching Speed
• High Conductance
APPLICATION
• For General Purpose Switching Applications
WELCOME TO OUR STORE!
-
All Categories
- Bridge Rectifier
- ESD Diode
- Fast Recovery Diode
- General Purpose Diode
- High Efficiency Diode
- MOSFET
- Schottky Diode
- Super Fast Diode
- Switching Diode
- Transistor
- TVS Diode
- Zener Diode

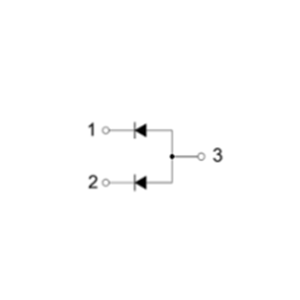

Switching Diode SOT-23 Series BAW56
SMD Fast Switching Diodes, Case SOT-23 BA Series, 3 Pads, Reverse Voltage (VR): 70V Max., Forward Current (IF) 0.20A Max.
Key Features:
- Series: SOT-23
- Reverse Voltage: 70V
- Forward Current: 200mA
- Non-Repetitive Peak Forward Surge Current @t=8.3ms: 2.0A
- Reverse Current @ VR=70V: 2.5µA
- Capacitance Between Terminals @VR = 0V, f=1MHz: 1.5pF
- Power Dissipation: 225mW
Specification
| Series | SOT-23 |
|---|---|
| Part Status | Active |
| Supplier Device Package | SOT-23, 3pads |
| Reverse Voltage | 70V |
| Forward Current | 200mA |
| Non-Repetitive Peak Forward Surge Current @t=8.3ms | 2.0A |
| Reverse Current @ VR=70V | 2.5µA |
| Reverse Breakdown Voltage @ IR= 100µA | 70V Min. |
| Capacitance Between Terminals @VR = 0V, f=1MHz | 1.5pF |
| Reverse Recovery Time @ IF =IR=10mA, Irr=0.1*I R, RL =100Ω | 6nS |
| Power Dissipation | 225mW |
| Thermal Resistance Junction To Ambient | 556°C/W |
| Junction Temperature | 150°C |
| Storage Temperature Range | -55 ~+150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23 series, BAW56 Type, 3 pads |
| RoHS Status | RoHS III Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8541.21.0075 |
| Standard Package (MPQ) | 3000pcs/Reel, Quantity entered must be multiple of 3000 |
| NCNR | Non-Cancelable/Non-Returnable |
