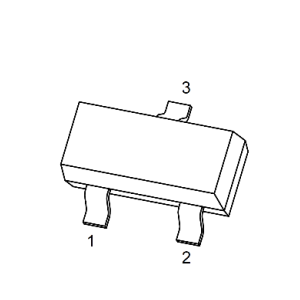

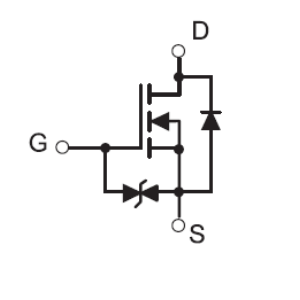

SMD Plastic-Encapsulate MOSFETS, SOT-23 series, 3 pads, 2N7002K Type, 60V N-Channel Enhancement Mode MOSFET, Reverse Working Voltage : 12V, Peak Pulse Power per (8/20μs): 350 Watts
SMD Plastic-Encapsulate MOSFETS, SOT-23 series, 3 pads, 2N7002K Type, 60V N-Channel Enhancement Mode MOSFET, Reverse Working Voltage : 12V, Peak Pulse Power per (8/20μs): 350 Watts
• Trench FET Power MOSFET
• Continuous Drain Current 3.0A
APPLICATION
• Load Switch for Portable Devices
• DC/DC Converter
| Series | SOT-23 |
|---|---|
| Part Status | Active |
| Supplier Device Package | SOT-23 series, 3 pads |
| Drain-Source Voltage | 60V Min. |
| Continuous Drain Current | 0.50A |
| Power Dissipation | 0.3W |
| Junction-to-Ambient Thermal Resistance | 400°C/W |
| Gate-body Leakage Current | +/-10uA |
| Gate-source threshold voltage | 2.5V |
| Junction Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23 series, 3 pads |
| RoHS Status | RoHS III Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8541.21.0075 |
| Standard Package (MPQ) | 3000pcs/Reel, Quantity entered must be multiple of 3000 |
| NCNR | Non-Cancelable/Non-Returnable |
SMD Plastic-Encapsulate MOSFETS, SOT-23 series, 3 pads, SI2301-3A Type, 20V P-Channel MOSFET, Continuous Drain Current: -3.0A, Maximum Power Dissipation: 1.2 Watts
SMD Plastic-Encapsulate MOSFETS, TO -220F series, 3 Pins, MDD10N65F Type, 650V N-Channel Enhancement Mode MOSFET, Drain-Source Voltage: 650V, Continuous Drain Current 10A, Junction Temperature: +150°C,
SMD Plastic-Encapsulate MOSFETS, SOT-23 series, 3 pads, BSS84 Type, -50V P-Channel MOSFET, Continuous Drain Current: -130mA, Maximum Power Dissipation: 225mW
SMD Plastic-Encapsulate MOSFETS, TO -220F series, 3 Pins MDD12N65F Type, 650V N-Channel Enhancement Mode MOSFET, Drain-Source Voltage: 650V, Continuous Drain Current 12A, Junction Temperature: +150°C,
SMD Plastic-Encapsulate MOSFETS, TO -220F series, 3 Pins MDD7N65F Type, 650V N-Channel Enhancement Mode MOSFET, Drain-Source Voltage: 650V, Continuous Drain Current 7.0A, Junction Temperature: +150°C
