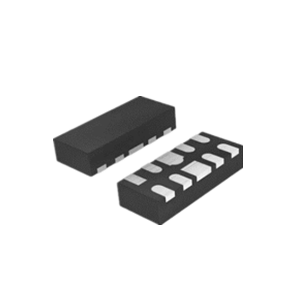

ESD Diode DFN-2510 Series ESD0524P

SMD Plastic-Encapsulate ESD Protection Diodes, DFN2510 series, ESD0524P Type, Polarity: Unipolar, Ultra Low Capacitance ESD Protection Array, Reverse Working Voltage : 5.0V, Peak Pulse Power per: 60 Watts

Key Features:
  • Series: DFN2510
  • Peak Pulse Power: 60W
  • Reverse Working Voltage: 5V
  • ESD per IEC 61000-4-2 (Air): ±25KV
  • ESD per IEC 61000-4-2 (Contact): ±20KV
  • Reverse Leakage Current @V RWM = 5.0V, Any I/O pin to Ground: 1.0uA
  • Operating Temperature: -55°C ~ +125°C
See Full Specification

$0.1655

Out of stock
SKU DFN25101S0524P
Original MPNESD0524P
Datasheet Data Sheet

Description

SMD Plastic-Encapsulate ESD Protection Diodes, DFN2510 series, ESD0524P Type, Polarity: Unipolar, Ultra Low Capacitance ESD Protection Array, Reverse Working Voltage : 5.0V, Peak Pulse Power per: 60 Watts

• Transient protection for asymmetrical data lines
• IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
• IEC61000-4-4 (EFT) 40A (5/50ns)
• Low capacitance:0.2pF ( I/O to I/O)
• Protects four data lines
• Package optimized for high-speed lines
• Cable Discharge Event(CDE)
• Low clamping voltage
• Low leakage current
• Each I/O pin can withstand over 1000 ESD strikes for ±8KV contact discharge

APPLICATION

• Serial ATA
• High Definition Multi-Media Interface (HDMI)
• Desktops, Servers and Notebooks
• USB 2.0/3.0 Power and Data Line Protection
• MDDI Ports
• Display Ports
• PCI Express
• Digital Visual Interface (DVI)

Specification

Series

DFN2510
Part Status

Active
Supplier Device Package

DFN2510 series, ESD0524P
Peak Pulse Power

60W
Reverse Working Voltage

5V
ESD per IEC 61000-4-2 (Air)

±25KV
ESD per IEC 61000-4-2 (Contact)

±20KV
Reverse Leakage Current @V RWM = 5.0V, Any I/O pin to Ground

1.0uA
Clamping Voltage @ I PP = 1A, t p = 8/20μs Any I/O pin to Ground

10V
Clamping Voltage @ I PP = 4A, t p = 8/20μs Any I/O pin to Ground

15V
Capacitance VR = 0V, f = 1MHz， Between I/O and GND

0.5pF
Operating Temperature

-55°C ~ +125°C
Mounting Type

Surface Mount
Package / Case

DFN2510 series, ESD0524P Type
RoHS Status

RoHS III Compliant
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8541.21.0075
Standard Package (MPQ)

3000pcs/Reel, Quantity entered must be multiple of 3000
NCNR

Non-Cancelable/Non-Returnable
